记录三维点云配准的经典Iterative Closest Point（ICP）算法。

之前记录了一个简单的基于marker的配准算法，但是这个算法非常初级，而且要求坐标是成组排序的。在实际应用中就会比较麻烦，一般只是用于手工选取极少数marker点来进行配准。而ICP算法依赖于点之间的几何关系，而非点的索引顺序，因此在较多的点的配准上更加方便。因为我们可以通过简单的强度过滤就筛选出绝大部分marker，然后再利用ICP算法进行配准，既方便又准确。

效果如上图所示，红色为source_points，绿色为 target_points，通过ICP算法可以得到从 source 到 target 的变换矩阵，通过应用该矩阵对 source再次进行变换，可以看到能够与 target_points重合。

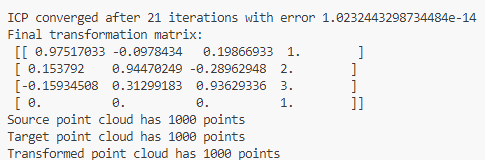

可以看到对于包含1000个点的点云配准，ICP21次迭代后就完成了，基本就是几秒钟的时间。这对于一般成像的基于marker的通道配准足够了。

代码如下：

import numpy as np
import open3d as o3d
import copy

# 生成示例点云并打乱顺序
def generate_sample_point_clouds(n_points=1000):
    # 生成随机源点云
    source_points = np.random.rand(n_points, 3) * 10
    # 打乱源点云顺序
    np.random.shuffle(source_points)
    source = o3d.geometry.PointCloud()
    source.points = o3d.utility.Vector3dVector(source_points)
    # 生成目标点云（通过随机变换）
    rotation = o3d.geometry.get_rotation_matrix_from_xyz([0.3, 0.2, 0.1])
    translation = np.array([1.0, 2.0, 3.0])
    target_points = (source_points @ rotation.T) + translation
    # 打乱目标点云顺序
    np.random.shuffle(target_points)
    target = o3d.geometry.PointCloud()
    target.points = o3d.utility.Vector3dVector(target_points)
    return source, target

# ICP算法实现
def icp(source, target, max_iterations=50, threshold=0.01):
    """
    实现ICP算法
    参数:
        source: 源点云 (Open3D PointCloud)
        target: 目标点云 (Open3D PointCloud)
        max_iterations: 最大迭代次数
        threshold: 收敛阈值
    返回:
        transformation: 最终变换矩阵 (4x4)
    """
    source_points = np.asarray(source.points)
    target_points = np.asarray(target.points)

    # 初始化变换矩阵
    transformation = np.eye(4)
    for i in range(max_iterations):
        # 构建KD树以查找最近点
        target_tree = o3d.geometry.KDTreeFlann(target)
        correspondences = []
        # 寻找最近点对
        for j, point in enumerate(source_points):
            [_, idx, _] = target_tree.search_knn_vector_3d(point, 1)
            correspondences.append([j, idx[0]])
        # 提取对应点
        src_corr = source_points[[c[0] for c in correspondences]]
        tgt_corr = target_points[[c[1] for c in correspondences]]
        # 计算质心
        src_centroid = np.mean(src_corr, axis=0)
        tgt_centroid = np.mean(tgt_corr, axis=0)
        # 去中心化
        src_centered = src_corr - src_centroid
        tgt_centered = tgt_corr - tgt_centroid
        # 计算协方差矩阵
        H = src_centered.T @ tgt_centered
        # 使用SVD分解计算旋转矩阵
        U, _, Vt = np.linalg.svd(H)
        rotation = Vt.T @ U.T
        # 计算平移向量
        translation = tgt_centroid - rotation @ src_centroid
        # 更新变换矩阵
        delta_transform = np.eye(4)
        delta_transform[:3, :3] = rotation
        delta_transform[:3, 3] = translation

        # 应用变换
        transformation = delta_transform @ transformation
        source_points = (rotation @ source_points.T).T + translation
        # 检查收敛
        error = np.mean(np.linalg.norm(src_corr - tgt_corr, axis=1))
        if error < threshold:
            print(f"ICP converged after {i+1} iterations with error {error}")
            break
    # 更新源点云
    source.points = o3d.utility.Vector3dVector(source_points)
    return transformation

# 应用变换矩阵进行点云配准
def apply_transformation(source, transformation):
    """
    应用变换矩阵到源点云
    参数:
        source: 源点云 (Open3D PointCloud)
        transformation: 变换矩阵 (4x4)
    返回:
        transformed: 配准后的点云
    """
    transformed = copy.deepcopy(source)
    transformed.transform(transformation)
    return transformed

# 可视化点云
def visualize_point_clouds(source, target, transformed, offset=[0.0, 0.0, 0.0]):
    """
    可视化点云，添加偏移以区分配准后的点云
    参数:
        source: 原始源点云 (红色)
        target: 目标点云 (绿色)
        transformed: 配准后的点云 (蓝色)
        offset: 配准点云的偏移量，仅用于可视化
    """
    source = copy.deepcopy(source)
    target = copy.deepcopy(target)
    transformed = copy.deepcopy(transformed)
    # 打印点云点数以调试
    print(f"Source point cloud has {len(source.points)} points")
    print(f"Target point cloud has {len(target.points)} points")
    print(f"Transformed point cloud has {len(transformed.points)} points")
    # 应用偏移（仅用于可视化）
    if offset != [0.0, 0.0, 0.0]:
        transformed_points = np.asarray(transformed.points) + np.array(offset)
        transformed.points = o3d.utility.Vector3dVector(transformed_points)
    source.paint_uniform_color([1, 0, 0])  # 红色
    target.paint_uniform_color([0, 1, 0])  # 绿色
    transformed.paint_uniform_color([0, 0, 1])  # 蓝色
    # 显示所有点云
    o3d.visualization.draw_geometries([source, target, transformed],
                                    window_name="ICP Registration with Shuffled Points",
                                    width=800, height=600)
    # 单独显示配准后的点云和目标点云，便于检查
    o3d.visualization.draw_geometries([target, transformed],
                                    window_name="Target and Transformed Point Clouds",
                                    width=800, height=600)

def main():
    # 生成点云并打乱顺序
    source, target = generate_sample_point_clouds()
    # 复制源点云用于变换
    source_copy = copy.deepcopy(source)
    # 运行ICP算法
    transformation = icp(source_copy, target)
    print("Final transformation matrix:\n", transformation)
    # 应用变换进行配准
    transformed_source = apply_transformation(source, transformation)
    # 可视化，添加小偏移以区分蓝色点云
    visualize_point_clouds(source, target, transformed_source, offset=[0.1, 0.1, 0.1])

if __name__ == "__main__":
    main()
